Automatic Oil Press & Integrated Screw Press

Automatic Oil Press

The automatic oil press, also called integrated screw oil press, adopts vacuum filtering device and new oil guiding technology to realize automatic filtering and produce pure oil. Simultaneous oil filtering and pressing of automatic oil press greatly improves the speed of filtering. Convenient and practical, the integrated oil press is the ideal choice for users. More than 20 kinds of oil crops like peanut, soybean, rapeseed, sunflower seed and cottonseed can be processed with the automatic oil press machine.

Automatic Oil PressAutomatic Oil Press Machine

Specifications of automatic oil press machine

Model Capacity(kg/h) Power(kw) Net weight(kg) Size:(mm)
6YL-68A 80-150 5.5 630 1650×1150×1750
6YL-100A 150-250 7.5 870 1950×1300×1900
6YL-120A 200-300 11 1280 2200×1650×2100
6YL-160A 400-600 18.5 1600 2500×1600×2500
6YL-180A 450-650 22 1800 2750×1750×2350

Oil crops that can be pressed with oil press:

Oil crops with screw oil press

The advantages of automatic oil press:

1, Wide application: more than 30 kinds of oil-bearing crops like peanut, sesame, sesame, rapeseed, sunflower, cottonseed and, soybean can be pressed with the automatic oil press. Both hot pressing and cold pressing can be realized.
2, Labor saving: 60% of labor force can be saved with the same output, the production can be performed with 1 or 2 people.
3. Safe and convenient. The whole process is controlled by the electric cabinet, making it more safe and easy to operate.
4. Wear parts like the pressing ring and worm are made of the carbon steel through the process of heat pretreatment, which is more durable.
5. High purity edible oil. The automatic oil press is equipped with two vacuum oil tanks to filter pressed oil. Thus, the finished oil is of high purity.
6, Small space occupation: 10-20 square meters is enough for the oil mill.

The structure of automatic oil press machine

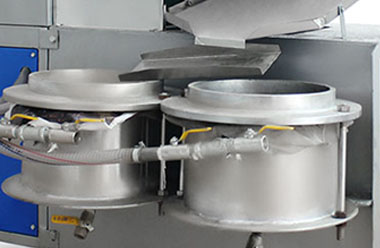

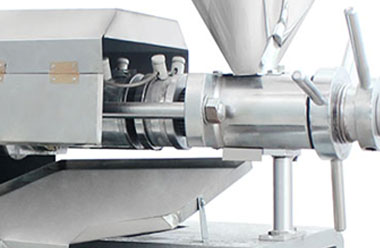

Screw shaftVacuum Filter

1, The automatic control system consists of the air switch, AC contactor, temperature control instrument and automatic circuit protection.
2, The heating and squeezing part consists of the heater, the pressing screw, the pressing bar and the machine body.
3, The transmission part consists of the main shaft, gear box, pulley and motor wheel.
4, The adjusting part consists of the adjusting screw, the adjusting nut, the handle and lock nut.
5, The vacuum oil filter part consists of the vacuum pump, oil filter and pipes.
