By incorporating the best features from similar products worldwide, this innovative peanut sieving machine offers a compact structure, exceptional efficiency, energy-saving capabilities, and user-friendly operation. With its reliable performance, precise classification, and ability to meet customer demands, the peanut sieving machine has become an indispensable piece of equipment in the food processing and manufacturing industries.
Technical Parameter of peanut sieving machine:
| Type | Overal Dimension | Grade | Output | Power(kw) | Voltage |
| ZH-S20 | 3200x1000x1200 | 3 | 0.8-1.2T/h | 2.2kw | 380V |
| ZH-S30 | 3200x1000x1900 | 4 | 0.8-1.2T/h | 2.2kw | 380V |
| ZH-S40 | 3200x1000x2200 | 5 | 0.8-1.2T/h | 2.2kw | 380V |
| ZH-S50 | 3200x1000x2600 | 6 | 0.8-1.2T/h | 2.2kw | 380V |
Efficiency and Classification Accuracy
The peanut sieving machine utilizes a sprocket and chain drive mechanism, allowing for smooth reciprocating screening of the sieve body. The screen pieces, made of punched iron plates, enable the material to undergo a comprehensive screening process, preventing unclear classifications and ensuring precise classification standards. Additionally, each layer of the sieve body features a return disc, facilitating the smooth flow of materials while preventing midway or front screen blockages that may hinder the classification process. The presence of well-defined sieve bottoms on each layer further enhances the smooth flow of materials.
Versatility and Grading Options
The peanut sieving machine comes in three variants: large, middle, and small. It offers the flexibility to classify peanuts into 2-6 specifications, allowing users to fulfill diverse customer requirements. The grading machine can be seamlessly integrated with a peanut stone removing machine, ensuring that the final product meets export standards.
Operational Workflow

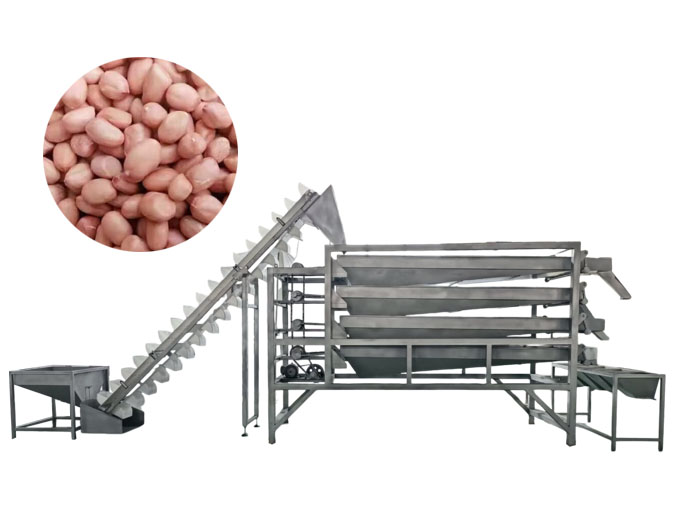

The peanut sieving machine consists of a hopper, conveyor, peanut sieving machine itself, supporting base, and a finished peanut collector. The operation is straightforward and efficient. Peanuts are introduced into the machine through the inlet and screened using adjustable aperture screens to accommodate different peanut sizes. Once screened, the peanuts are discharged through the appropriate outlet based on their size. Vertical bucket elevators efficiently transport the peanuts to the material receiver, completing the sorting process. The peanut sieving machine's multiple trays with grading screens effectively classify the peanuts into 4-5 specifications through controlled shaking.
Benefits and Applications of peanut sieving machine
The peanut sieving machine has found widespread use in food processing, manufacturing, and related fields. Its implementation significantly enhances work efficiency and product quality while reducing labor and time costs. By automating the sorting process, this machine eliminates the need for manual labor, minimizing errors and increasing productivity. Moreover, the machine's environmental-friendly and energy-saving features align perfectly with the demands of modern society, adhering to stringent environmental protection standards.
Peanut kernels sieving machine has large, middle, small three types. It can be classified into 2-6 specifications; screening once can meet customer’s demand. The grading machine can be used with peanut stone removing machine, the product quality reach the export standard.
