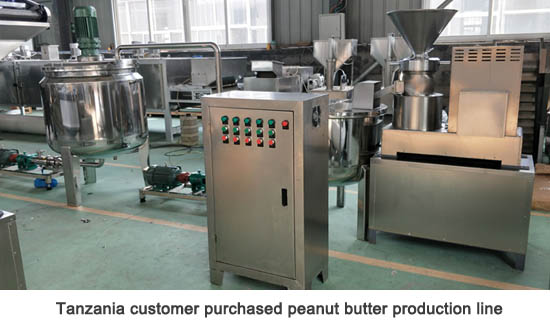

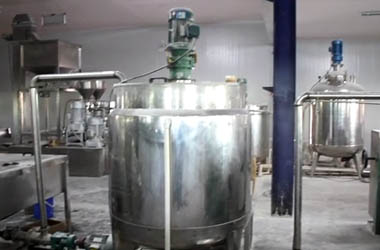

This peanut butter production line is used to produce peanut butter in factories. The production line can complete from peanut roasting to peanut butter packaging, realizing production automation, continuity and high efficiency.
The main equipments of this peanut butter processing line are roaster, peeling half grain machine, picking belt, elevator, peanut butter machine, agitator tank, transfer pump, mixer, homogenizer, fine grinding machine, vacuum tank, cooling machine, filling machine and so on. Its characteristics are flow line production, high mechanization, good reliability, full enclosed production and no pollution.
Peanut butter processing line process:
Elevator -- Roasting -- Cooling -- Peeling -- Selecting -- Milling -- Mixing -- Cooling --de-gasing -- Liquid filling machine

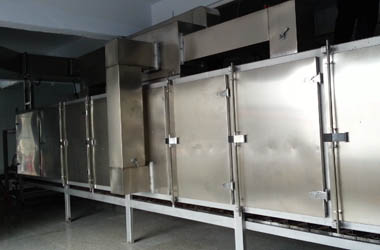

Roasting: batch roaster’s working temperature is 200-210°C within 20-30minutes. The batch roaster will bake some delicious smells.
Cooling: Peanut will be send cooling belt to cool.

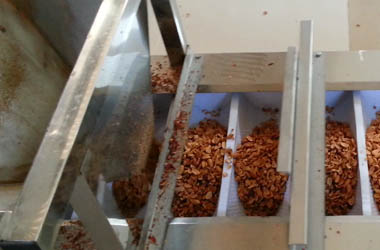

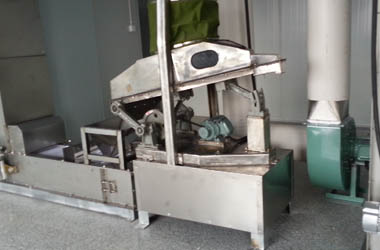

Peeling: put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical. (It is matched with manual type conveyor in the quotation)

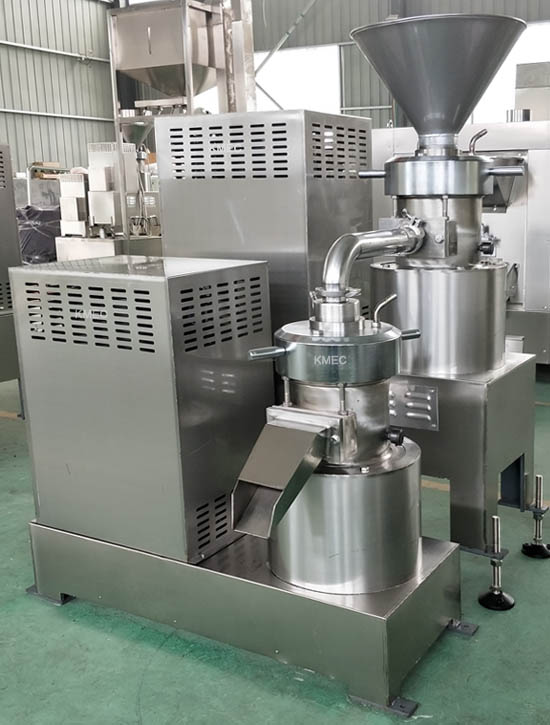

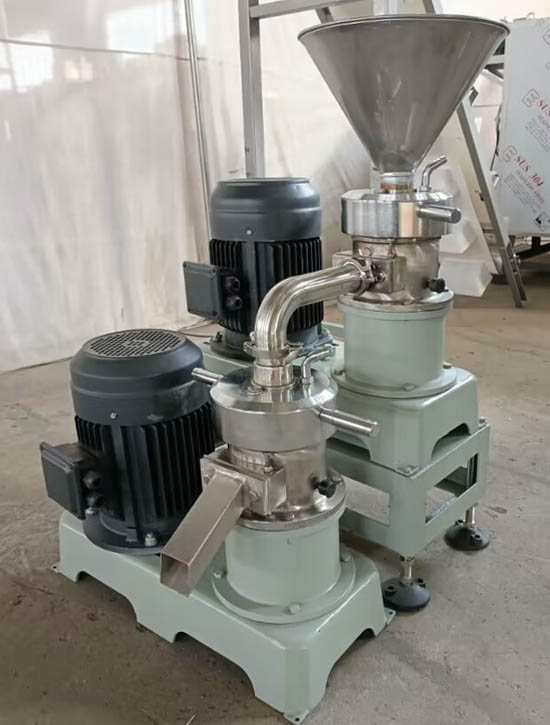

Grinding: Using steel grinder to make the first grinding; Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7um; temperature of grinding is controlled below 68°C.
Cooling Mixing: make the butter more homogeneous and the butter through second grinding should be cooled immediately. The temperature should go down 45°C.
Buffer Tank: Short time storage and take out the air from peanut butter
Storage tank: settling down in the storage tank till the temperature drop to air temperature.
Filling machine: Automatic filling machine, the finished peanut butter is packed into 200g/500g/1000g bott.
This peanut butter making process line can produce stable peanut butter, particle peanut butter and common type of peanut butter. Also produce a stable and common type of sesame.
